 The Siemens plc programming tutorial course will help you learn about Siemens S7 PLC & HMI  and become an expert in industrial automation

Simatic S7 Features

a.       Modular small control system

b.      Performance graded range of CPU

c.       Extensive selection of modules

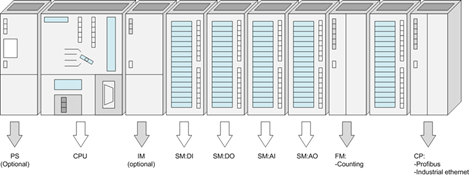

d.      Expandable design with up to 32 modules

e.      Backplane bus integrated into the modules

f.        Can be networked with MPI, Profibus, or Industrial ethernet

g.       Central PG/PC connection with access to all modules

h.      No slot restrictions

i.         Configuration and parameter setting with the help of “HW Config”

Mode Selector CPU



Simatic S7 Mode Selector

MRES    = Memory reset function

STOP     = Stop mode, program not executed

RUN       = Program execution

RUNP    = Program execution, read/write access

Simatic S7 Status Indicator

SF           = Group error, internal CPU, or fault in module

BATF      = Battery fault

DC5V     = Internal 5 VDC voltage indicator

FRCE      = FORCE

RUN       = Flashes when the CPU is starting up, then steady light in Run mode

STOP     = Show steady light in Stop mode

SF DP     = Physical bus fault

BUSF     = No configuration or incorrect configuration
